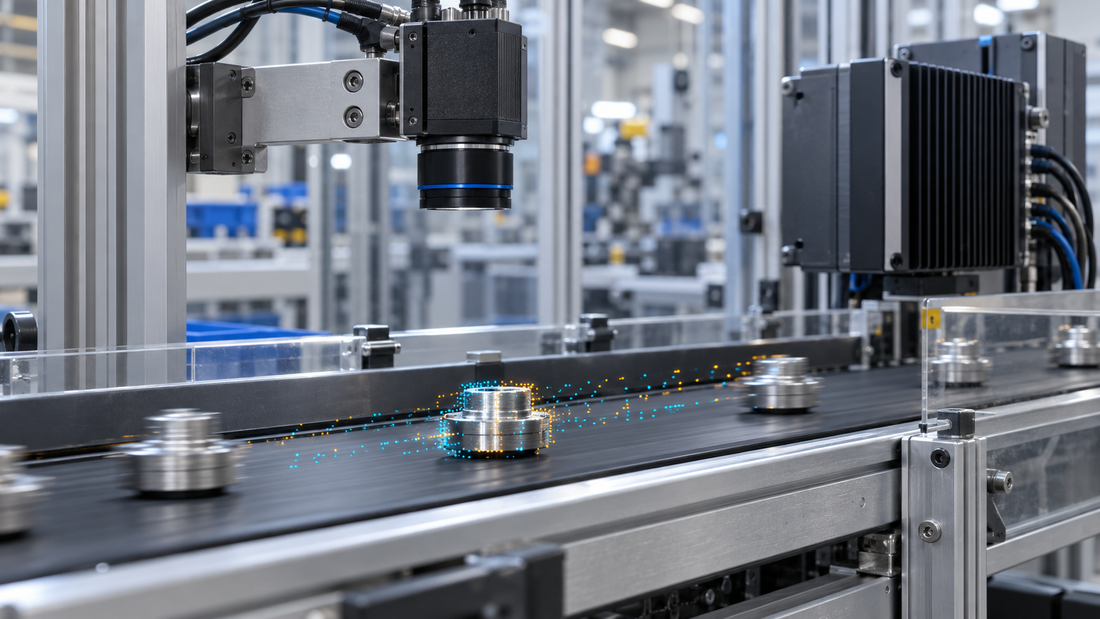

An event-based industrial camera detecting sparse, timestamped edge changes around precision metal components moving rapidly along a guarded conveyor.

Event-Based Vision for Modern Industrial Automation

September 7, 2026

Event-Based Vision: How Cameras Learned to See Motion Without Frames

Introduction

Traditional machine-vision cameras capture complete images at fixed intervals. Whether something in the scene changed or not, every frame records another grid of pixels.

That approach works well for countless inspection and robotic applications. It becomes more difficult when components move extremely fast, lighting conditions vary widely, or the automation system must react with very little delay.

Event-based cameras operate differently. Instead of repeatedly photographing the entire scene, each pixel independently reports when it detects a significant brightness change.

The result is not a conventional video. It is a stream of precisely timed visual events representing motion and changing edges.

This modern sensing method can help automation systems count fast-moving products, track robotic motion, monitor vibration, inspect dynamic processes, and respond to changes that may occur between ordinary camera frames.

What Is an Event-Based Camera?

An event-based camera is an image sensor in which pixels respond independently to changes in brightness.

A typical event contains four pieces of information:

Horizontal pixel position
Vertical pixel position
Timestamp
Polarity, indicating whether brightness increased or decreased

This is commonly represented as:

Event = (x, y, time, polarity)

If nothing changes at a pixel, that pixel normally produces no event. A moving component, rotating shaft, flashing light, spark, or changing shadow creates events along the affected parts of the scene.

The camera therefore reports change rather than repeatedly transmitting complete images.

Researchers sometimes call these devices dynamic vision sensors, neuromorphic cameras, silicon retinas, or event-based vision sensors. Although those terms can refer to slightly different implementations, they share the principle of asynchronous visual sensing.

How Event-Based Vision Differs From Conventional Video

A conventional camera operates according to a frame rate.

A camera running at 100 frames per second captures one complete image every 10 milliseconds. An object can move considerably between those exposures. Increasing the frame rate reduces the interval but also increases data volume, lighting requirements, processing load, and hardware cost.

An event camera does not wait for the next global frame. A pixel can respond as soon as its brightness-change threshold is reached.

Characteristic	Frame-based camera	Event-based camera
Output	Complete images	Asynchronous pixel events
Timing	Fixed frame intervals	Individual event timestamps
Static appearance	Captured clearly	Produces few or no events
Data rate	Largely determined by resolution and frame rate	Changes with scene activity
Motion blur	Depends on exposure time	Greatly reduced in native event data
Algorithms	Mature image-processing ecosystem	Specialized event-stream processing
Best suited for	Appearance, color, dimensions, static defects	Motion, timing, tracking, vibration, fast changes

Neither architecture is universally better. They observe different kinds of visual information.

The Modern Development of Dynamic Vision Sensors

Event-driven vision research grew substantially during the 2000s.

A 2005 research sensor used a 64-by-64-pixel array to report logarithmic changes in brightness. A widely cited 2008 IEEE paper then described a 128-by-128-pixel CMOS temporal-contrast sensor in which every pixel generated asynchronous events with submillisecond timing. University of Zurich event-sensor research history, 2008 IEEE dynamic vision sensor paper

These early devices demonstrated the operating principle, but their relatively low resolution and specialized interfaces limited general industrial adoption.

The technology advanced through improvements in:

Pixel design
Contrast sensitivity
Sensor resolution
Noise control
Dynamic range
Data interfaces
Processing algorithms
Embedded computing
Machine learning
Commercial camera availability

In September 2021, Sony announced stacked event-based sensors developed with Prophesee. The larger model provided approximately 0.92 effective megapixels while retaining asynchronous brightness-change detection and high-speed, low-latency output. Sony’s September 9, 2021 event-sensor announcement

This type of development moved event vision from small experimental arrays toward practical industrial and robotic sensing.

Why Event Cameras Can Respond So Quickly

A frame camera must generally expose, read, transmit, and process an entire image before the system can act on it.

An event camera sends information when individual pixels change. The system does not necessarily need to wait for a complete image.

For example, imagine a metal component crossing a detection line on a high-speed conveyor.

A conventional vision system may need to:

Trigger the camera.
Expose an image.
Read the pixel array.
Transfer the image.
Process the frame.
Locate the component.
Calculate its position.

An event-based system can begin receiving changes as soon as the component’s leading edge enters the field of view. An algorithm can track the resulting event pattern while the object is still moving.

This can reduce sensing latency, but total system response still depends on:

Sensor settings
Interface speed
Algorithm design
Computer hardware
Network communication
Controller scan time
Actuator response
Safety requirements

A fast sensor cannot compensate for a slow downstream control system.

Understanding Temporal Resolution

Frame rate and temporal resolution are related but not identical.

A high-speed frame camera might capture thousands of images per second. Every pixel in a frame is still associated with the exposure timing of that image.

In an event camera, different pixels can generate independently timestamped events between conventional frame intervals.

This can reveal:

Rapid edge movement
Small mechanical oscillations
Rotational motion
Short-lived process changes
High-speed trajectories
Precise timing between objects

A major event-vision survey describes the technology’s advantages as high temporal resolution, low latency, high dynamic range, and sparse asynchronous output. IEEE event-based vision survey

Why the Data Can Be Sparse

Consider a stationary machine viewed by a conventional camera.

Every new frame contains the machine, floor, enclosure, cables, fixtures, and background—even if none of them changed.

An event camera produces little information from those stationary areas. When one component begins moving, events primarily appear around its changing edges.

This can reduce unnecessary data, especially when:

Most of the scene remains stationary
Only a few objects move at once
The application needs motion rather than appearance
Changes occur quickly but briefly

The data rate is not always low, however.

A scene containing vibration, flickering lights, reflections, or many moving objects can create a dense event stream. Bandwidth and computing requirements must therefore be evaluated under the busiest realistic condition.

A High-Speed Counting Example

Imagine small metal caps traveling rapidly down a production conveyor.

A conventional camera could count them, but the system may face several challenges:

Motion blur
Products crossing between frames
Overlapping objects
High image-processing load
Strong reflections from the metal
Very short spacing between components

An event camera detects brightness changes created by the moving edges.

The counting algorithm can:

Define a virtual detection region.
Collect events as each object enters the region.
Group related events into a moving cluster.
Estimate direction and speed.
Count the object after it crosses the detection boundary.
Reject event patterns that do not match the expected motion.

Because stationary portions of the conveyor generate relatively little information, processing can concentrate on the moving products.

Commercial event-vision systems have demonstrated this principle for high-speed counting and particle monitoring. Industrial event-based vision applications

Measuring Vibration Without Contact

Event cameras can also observe mechanical vibration.

A traditional accelerometer measures motion at the physical point where the sensor is mounted. Event-based vision can track small visual movements across multiple locations in the image.

Possible subjects include:

Conveyor belts
Robot tooling
Machine frames
Fans
Rotating shafts
Flexible structures
Product vibration
Test specimens

An algorithm can examine the timing and movement of events at selected pixels, then estimate oscillation frequency or relative motion.

This approach may be useful when:

Physical sensor mounting is difficult
The object is small or lightweight
Several points must be compared
Contact with the object would affect the measurement
The target is hot, moving, or inaccessible

It does not automatically replace accelerometers. Camera stability, lens selection, distance, lighting, spatial resolution, and line of sight all influence the result.

A vibrating camera mount can also make the entire scene appear to move.

Robotic Motion Tracking

Robots and autonomous machines benefit from rapid information about movement.

Event cameras can support:

Tracking objects during robotic picking
Estimating optical flow
Following fast trajectories
Stabilizing drones
Detecting unexpected motion
Measuring robot-tool vibration
Guiding high-speed interception
Monitoring people or obstacles under difficult lighting

The sparse event stream can allow a motion-tracking algorithm to update more frequently than a conventional frame pipeline.

However, event vision does not eliminate the need for:

Calibration
Coordinate transformation
Depth information
Robot-state feedback
Collision avoidance
Safety-rated sensing
Control-system validation

A standard event camera should not be treated as a safety sensor unless the complete device and application have the appropriate safety certification and architecture.

Dynamic Range and Difficult Lighting

Factories frequently contain challenging lighting conditions:

Dark machine interiors
Bright welding arcs
Reflective metal
Windows and skylights
Flashing indicator lights
Rapid transitions between light and shadow

Many event cameras measure relative brightness changes over a wide range of illumination.

This can help them continue detecting movement where an ordinary image might contain extremely dark areas and saturated bright regions.

The advantage is not unlimited. Event-camera performance can still be affected by:

Insufficient contrast
Sensor noise
Incorrect threshold settings
Lens glare
Light-source flicker
Reflections
Occlusion
Excessive temperature
Dirty optics

Good optical and lighting design remains essential.

Event-Based Inspection

Event vision is best suited to defects or process conditions that create a change.

Potential applications include:

Detecting missing moving components
Monitoring material flow
Identifying irregular trajectories
Observing weld-process dynamics
Detecting product jams
Measuring rotating equipment
Monitoring droplets or particles
Checking timing between mechanisms
Detecting unexpected motion after a stop command

A 2025 laser-welding study used event-camera output to examine dynamic process behavior and distinguish production conditions using event representations and machine learning. Event-based vision in laser-welding research

Static cosmetic inspection is more difficult. A stationary scratch, incorrect color, or printed label may not generate useful events once the camera and product stop moving.

The system might need controlled relative motion, changing illumination, a conventional camera, or a hybrid sensor.

How Event Data Is Processed

Traditional machine-vision software expects a two-dimensional image. Event-based data arrives as a time-ordered stream.

Several processing approaches are possible.

Individual Event Processing

Algorithms respond directly to events as they arrive.

This can provide extremely low latency but requires careful control of noise and computational overhead.

Event Accumulation

Events collected over a short time window are combined into an event image or surface.

The resulting representation can be processed using modified image-recognition methods.

The selected window creates a tradeoff:

A short window preserves timing but may contain too little information.
A long window creates a more recognizable shape but sacrifices temporal precision.

Time Surfaces

A time surface records how recently each pixel generated an event.

Recent events may appear bright while older events fade, making motion direction and shape easier to interpret.

Voxel and Tensor Representations

Events can be organized into spatial and temporal bins for processing by machine-learning models.

Spiking Neural Networks

Because event cameras produce spike-like asynchronous data, they are natural candidates for neuromorphic processors and spiking neural networks.

This combination remains an active development area. Conventional CPUs, GPUs, and FPGAs are still commonly used for practical event processing.

Positive and Negative Events

An event sensor normally distinguishes between increasing and decreasing brightness.

For example, when a bright object crosses a dark background:

Its leading edge may create positive events as pixels become brighter.
Its trailing edge may create negative events as those pixels return to the darker background.

These two polarities help describe the object’s movement.

The camera is not necessarily reporting the absolute brightness or color of every pixel. It is reporting that the brightness changed far enough in one direction to cross the configured threshold.

Event Cameras and Machine Learning

Machine learning can interpret event streams for tasks such as:

Object recognition
Gesture recognition
Motion classification
Pose estimation
Optical flow
Depth estimation
Anomaly detection
Robotic tracking
Process monitoring

Training these systems presents challenges.

Many existing vision datasets consist of conventional images or video. Event-based models require:

Native event recordings
Simulated event data
Accurate timestamps
Appropriate labels
Realistic motion
Representative lighting conditions
Correct sensor-noise models

Converting ordinary video into simulated events can support development, but the result must still be validated using the physical event camera.

Where Conventional Cameras Remain Better

Event-based vision is not a universal replacement for frame cameras.

A conventional camera may remain better for:

Reading text
Inspecting labels
Measuring static dimensions
Checking color
Identifying surface finish
Detecting stationary scratches
Producing images for human review
Recording complete visual evidence
Applications supported by mature vision software

The central question is whether the application depends primarily on appearance or change.

If the task asks, “What does this product look like?” a frame camera is often appropriate.

If it asks, “What moved, exactly when, and how quickly?” an event camera may offer an advantage.

Hybrid Vision Systems

Many advanced systems combine frame-based and event-based sensing.

A hybrid arrangement may use:

A frame camera for color and static appearance
An event camera for high-speed motion and timing
A depth sensor for distance
Encoders for machine position
A PLC for process state
Edge computing for data fusion

For example, a robotic picking station could use a conventional image to identify the product and an event stream to track it as the conveyor accelerates.

This combination preserves recognizable imagery while adding more precise motion information.

Common Implementation Problems

Expecting a Normal Video Feed

Raw event data does not resemble ordinary footage. Engineers need suitable visualization and processing tools.

Ignoring Lighting Flicker

Pulse-width-modulated LEDs and alternating-current lighting can create large numbers of unwanted events.

Setting the Threshold Incorrectly

A threshold that is too sensitive produces noise. One that is not sensitive enough can miss subtle motion.

Using Event Vision for a Static Problem

A stationary defect may generate no useful signal unless relative movement or controlled illumination is introduced.

Forgetting the Variable Data Rate

A quiet scene may produce little traffic, while sparks, vibration, reflections, or rapid motion can cause a sudden increase.

Failing to Stabilize the Camera

Camera vibration produces events across the scene and can hide the target’s motion.

Applying Frame Algorithms Without Adaptation

Event streams contain timing information that may be lost if they are carelessly converted into ordinary images.

Designing a Practical Pilot

A factory evaluating event-based vision can follow a focused process:

Choose a motion-driven problem that conventional vision struggles to solve.
Define the required detection latency and accuracy.
Measure the target’s speed, size, contrast, and movement.
Evaluate lighting frequency, reflections, and environmental conditions.
Select the lens, working distance, resolution, and event threshold.
Record real event data across representative production conditions.
Include jams, misfeeds, speed changes, and defective examples.
Compare the result with an appropriate high-speed frame camera.
Test processing latency from sensor to final controller decision.
Measure false detections and missed events.
Test camera movement, dirty optics, network loss, and lighting failure.
Confirm that the improvement justifies the added integration complexity.

Useful performance measures include:

Detection latency
Timing error
Count accuracy
Missed-object rate
False-trigger rate
Data bandwidth
Processor utilization
Performance at maximum line speed
Performance under changing illumination
Recovery time after communication loss

What Automation Professionals Should Learn

Event-based vision brings optics, automation, embedded computing, robotics, and time-series processing together.

Useful skills include:

Industrial camera and lens selection
Lighting design
Event-stream fundamentals
Image-sensor calibration
Signal and noise analysis
Coordinate systems
Motion tracking
Python or C++ programming
Edge computing
Machine learning
Robot and PLC integration
Network timing
Functional and machine safety
Experimental validation

Technicians may also need to recognize that an event camera can appear inactive while operating correctly. If nothing in the scene changes, few events should be produced.

Why Event-Based Vision Matters to Modern Automation

Automation systems increasingly need to react to physical change with greater speed and precision.

Event-based cameras offer a different way to allocate sensing and computing resources. Instead of repeatedly recording an entire scene, they concentrate on where and when visual changes occur.

This can reveal motion that falls between conventional frames, reduce processing of stationary backgrounds, and support applications involving fast machinery, robotics, vibration, particles, and dynamic manufacturing processes.

Its importance does not come from replacing every industrial camera. It comes from giving automation engineers another sensing architecture for problems where timing matters more than producing a conventional photograph.

Conclusion

Event-based vision changes the fundamental output of a camera.

Each pixel reports meaningful brightness changes as asynchronous, timestamped events. This provides high temporal resolution, low sensing latency, sparse output, and strong performance during rapid motion or challenging illumination.

The same architecture has limitations. Static appearance, color, text, and conventional image review are often better served by frame cameras. Event streams also require specialized algorithms, careful lighting, stable mounting, and realistic testing.

The strongest applications begin with the problem—not the novelty of the sensor. When precise motion and timing are the true requirements, event-based vision can allow an automated system to see changes that conventional frames may miss.

Automation History does not claim authorship or ownership of the third-party articles featured in our Daily Articles section. All articles, research, and reporting are credited to their original authors and publishers, with links provided to the original sources. Automation History shares these links solely for educational and informational purposes, helping readers discover and learn from relevant content. All rights remain with the respective authors and publisher

Back to blog
